Anyone who has run a chop saw for a full shift knows the routine. Read the tape, slide the stop, check it again, make the cut, and then wonder why the last piece came out a sixteenth long. A chop saw measuring system takes that guesswork out of the job. The operator types in a length, and a motorized stop moves to the exact spot. RazorGage builds this kind of equipment, and the idea behind it is simple: let the machine do the measuring so people can focus on the work.
Why Tape Measures and Manual Stops Hold Shops Back
Hand measuring works fine for a few cuts. The trouble starts when you have a cutlist with two hundred pieces in six different lengths. Every cut is another chance to misread a mark, bump the stop, or lose your place. Small errors pile up, and the cost shows up later as scrap, rework, or parts that do not fit during assembly.
There is also the fatigue side of it. Bid-afternoon, even a careful operator slows down or gets sloppy. A chop saw measuring system does not get tired. It moves to the same spot at 8 a.m. and at 4 p.m., which is exactly what a production shop needs from its cutting station.

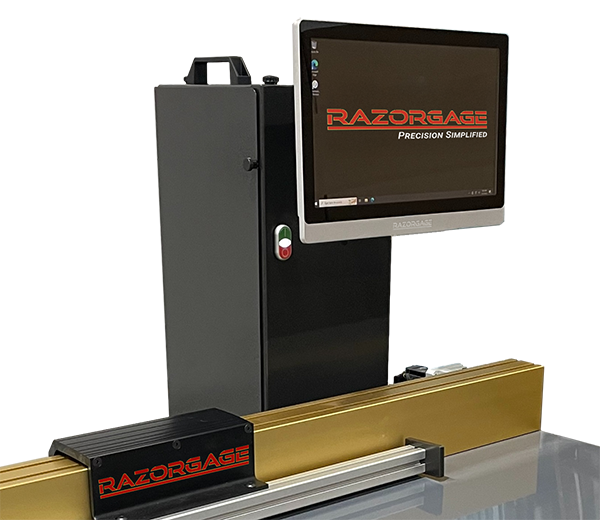

How a Programmable Saw Stop Actually Works
The basic setup is easy to picture. A carriage rides on a rail beside the saw. A motor drives it to a programmed position, and the saw cuts against it. You can use it as a measuring stop, or as an automatic pusher that moves the material to the blade.
RazorGage builds its positioners with the same style of linear bearings you find on CNC machining centers. Its ST model uses a hardened and ground Hiwin rail with two recirculating ball bearing blocks, which keeps the motion smooth and rigid. A planetary gearhead with near zero backlash helps the carriage land in the same spot every time. The controller also reacts quickly if the material jams, which protects the drive belt from stretching. The belt itself carries a five year warranty, and the system is available in stroke lengths up to 60 feet.
These systems are not limited to chop saws, either. The same positioner works with upcut saws, downcut saws, drill presses, and haunching, notching, and punching machines.
What Accuracy Looks Like on the Shop Floor
Numbers matter here, so here are the ones RazorGage publishes. The ST system is rated at plus or minus .004 inch over 12 feet, and repeatability is .001 inch. There is one catch worth knowing. That accuracy figure assumes the system is calibrated with a capable measuring device. A good tool still needs a proper setup.
Think about what that means for a cabinet or window shop. Parts come off the saw at the same length from the first piece to the last. Joints close up cleanly, and nobody spends the afternoon trimming parts that were cut a hair too long.
Software, Cutlists, and Less Waste
The hardware gets the attention, but the software is where a lot of the time savings happen. The RazorGage software runs on Windows, so networking and file sharing work like any other office PC. You can store thousands of cutlists and sort them into thousands of groups by whatever criteria make sense for your shop. Fraction keys let the operator adjust a position in a few keystrokes, so there is no hunting through decimals.
Labels are part of it too. The system can print labels with text, barcodes, QR codes, or images, which helps when parts move on to another station. If material cost is your main worry, there is optional optimizing software that arranges cuts to reduce leftover stock. For shops that buy expensive lumber or extrusions, that alone can pay for a lot of the system over time.
Picking the Right Setup for Your Shop
Not every shop needs the same thing, so it helps to think about how you actually work.
Windows or Android Control
The ST positioner with Windows control is the full-featured option. It has the complete software, large cutlist storage, and the optimizing upgrade. The ST-A uses the same CNC-style mechanics but runs on an Android interface. You can send cutlists over WiFi or build them on screen, which suits smaller shops that want accuracy without the full software package.
Stroke Length and Saw Type
Think about the longest piece you cut and the saw you already own. Since the system works with several machine types, many shops add it to equipment they already have instead of replacing it. That keeps the upfront cost lower and the learning curve shorter.
When One Machine Does More: The RazorOptimal
Some shops want more than a measuring stop. The RazorOptimal pairs the RazorGage ST positioner with a Cyclone 600 upcut saw to make a full optimizing saw system. The operator marks defects on the board with a crayon, such as knots or splits. The machine scans the board, then fits the remaining parts into the clean areas. It also clamps the material, cuts, and can print part information directly on the piece.
There is also a version with an 18 inch downcut saw that drills pocket holes and scribes face frame layout lines in the same pass. According to the company, that setup can produce enough face frame parts for about 40 face frames per hour. For a cabinet shop, that means parts come off the saw nearly ready to assemble.
Final Thoughts
A good chop saw measuring system pays you back in small ways every day. Fewer mistakes, less scrap, faster cutlists, and operators who are not squinting at a tape at the end of a long shift. If you want to go further and combine measuring, defect scanning, and cutting in one station, the RazorOptimal is worth a close look. RazorGage can walk you through which setup fits your saw, your material, and your daily volume.
FAQs
What is a chop saw measuring system?
It is a motorized, programmable stop that positions material against the saw blade. You enter a length and the stop moves to it, so you do not need to measure each cut by hand.
How accurate is the RazorGage ST?
RazorGage lists accuracy at plus or minus .004 inch over 12 feet, with repeatability of .001 inch. The accuracy rating assumes the system has been calibrated with a capable measuring device.
Can I add it to a saw I already own?
In many cases, yes. RazorGage positioners work with chop saws, upcut and downcut saws, drill presses, and haunching, notching, and punching machines. Contact the team with your saw model to confirm fit.
What is the difference between the ST and the ST-A?
The ST runs full Windows software with large cutlist storage and optional optimizing. The ST-A uses an Android interface with the same CNC-style mechanics, but without the full Windows application.
What does the RazorOptimal add?
It combines the ST positioner with a Cyclone saw, scans crayon-marked defects, and fits parts around them. A downcut version can also drill pocket holes and scribe face frame layout lines.
